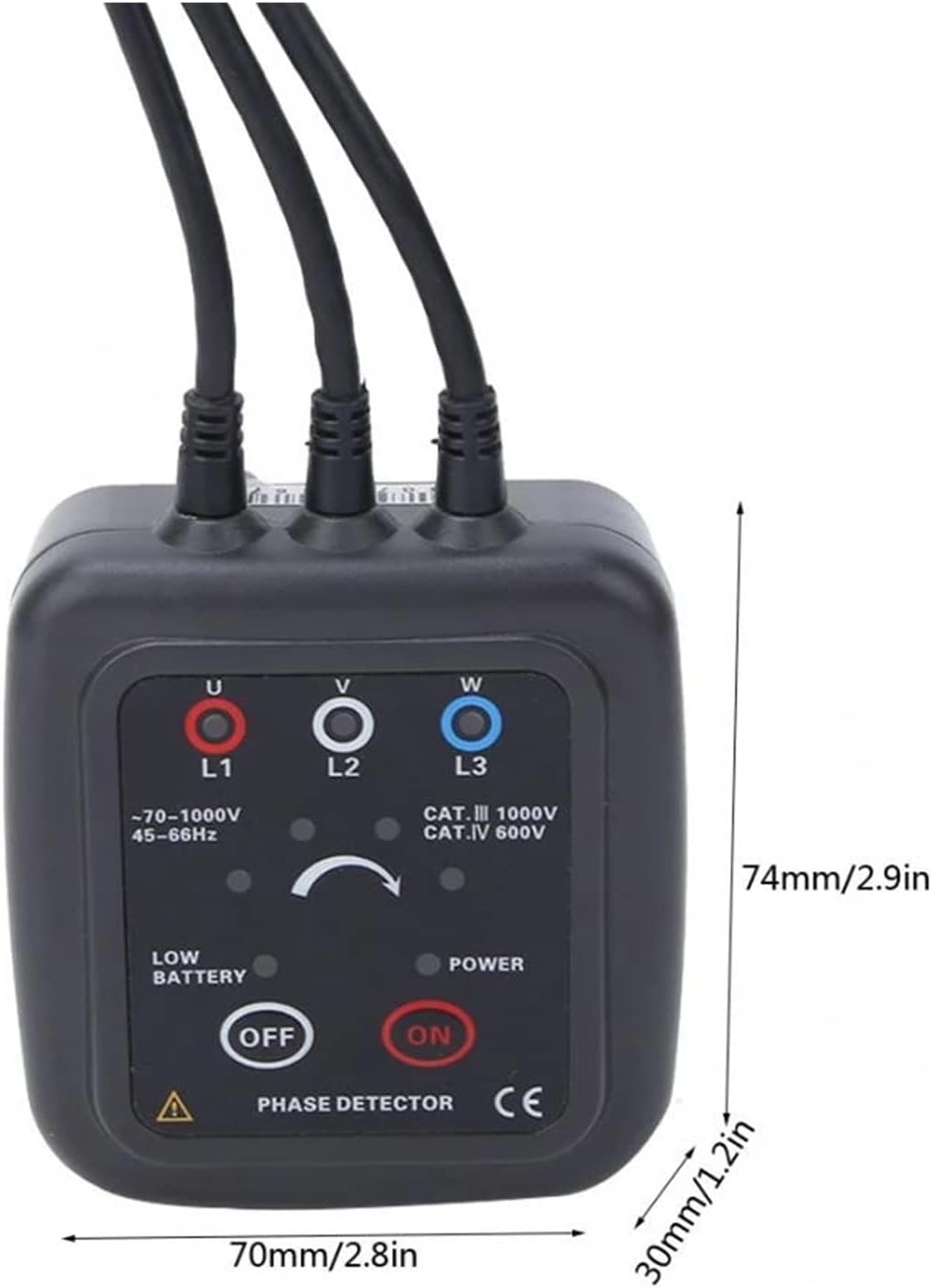

Insulation Resistance Tester, Non-Contact Phase Detector Portable ETCR1000D Large Caliber Non-contact 3-Phase Sequence Detection Phase Detector Tester

Feature:6. In addition to phase sequence detection, it also has the functions of live wire examination, simple power detection, fire-wire identification, phase deficiency determination, break location detection, DC line break and line maintenance, equivalent to 3 induction electric pens.7. Field test, effectively protect the physical safety of operators and improve productivity.8. Comes with a lanyard, compact size and lightweight, easy to carry.Specification:Item Type: Non-Contact Phase Sequence DetectorMaterial: ABSColor: As shown in the pictureProductNon-contact phase detectorFunctionsPhase detection (normal phase, reverse phase and phase deficiency), live wire examination, simple power detection, breakpoint location and line maintenancePower SupplyDC 3V 2 x AA batteries (LR6)(Not included), continuously working for 70 hoursVoltage RangeAC 70-1000V, 45-65Hz (Sine Continuous Input)Clamp Wire SizeDiameter: 10-40mm / 0.4-1.6inLED DisplayPositive Phase Sequence: The four phase-sequence lamps blink in order (clockwise).Negative Phase Sequence: The four phase-sequence lamps blink in order (counterclockwise).Line-voltage Indication: L1, L2, L3 lamp light up.Default Phase: L1/ L2/L3 lamp is off.Open Circuit: L1/L2/L3 lamp is off.BuzzerPositive Phase Sequence: The instrument emits intermittent short beepsNegative Phase Sequence: The instrument emits a continuous long beepBattery CheckAfter the power is turned on, the POWER indicator is on: The battery is low. The LOW BATTERY light is on.Auto Power off After 5minutes, the meter automatically cut off power supply.Meter Dimension70x74x30mm/2.8x2.9x1.2inClamp Lead Length0.6m/2ftNet Weight256g/9ozWorking Temperature and Humidity-10-55; below 80%rhStorage Temperature and Humidity-20-60; below 90%rhMaximum Measured VoltageAC 1000VDielectric Strength5.4kVrmsMaximum Rated Power300mVAPackage List:1 x Non-Contact Phase Sequence Detector1 x Instruction Manual1 x Leather Case

• 1. Instrument base plate is provided with magnet, instrument can adsorbed on the metal shell when testing, the operation more convenient.
• 2. The dynamic sound and light indicates the positive or negative phase of the phase sequence of the three-phase power supply, which is clear at a glance.
• 3. More sensitive ETCR1000C clamp, can even sense the AC voltage signal as low as a few Volts, with a wider range of live electricity.
• 4. It has a better power-saving performance with the maximum rated power of 300mVA.
• 5. The three clamps of ETCR1000C are in three colors, it is more in line with the distinction of three-phase line, and more scientific and artistic overall appearance.
